N600 BIOS Setting Manual

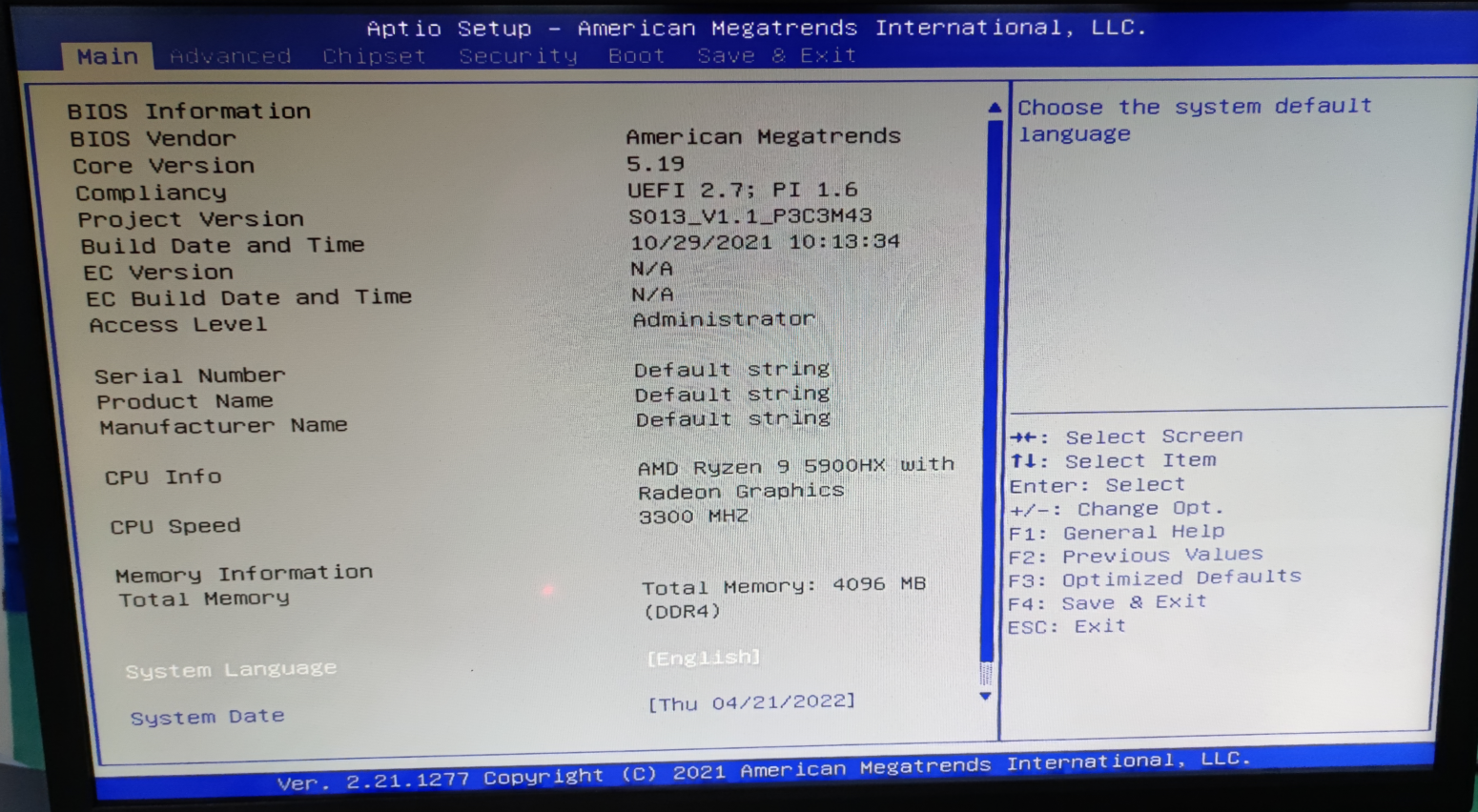

  • Main page

PRESS ESC or DEL into the Main page, Press F7 to choose the first boot option.

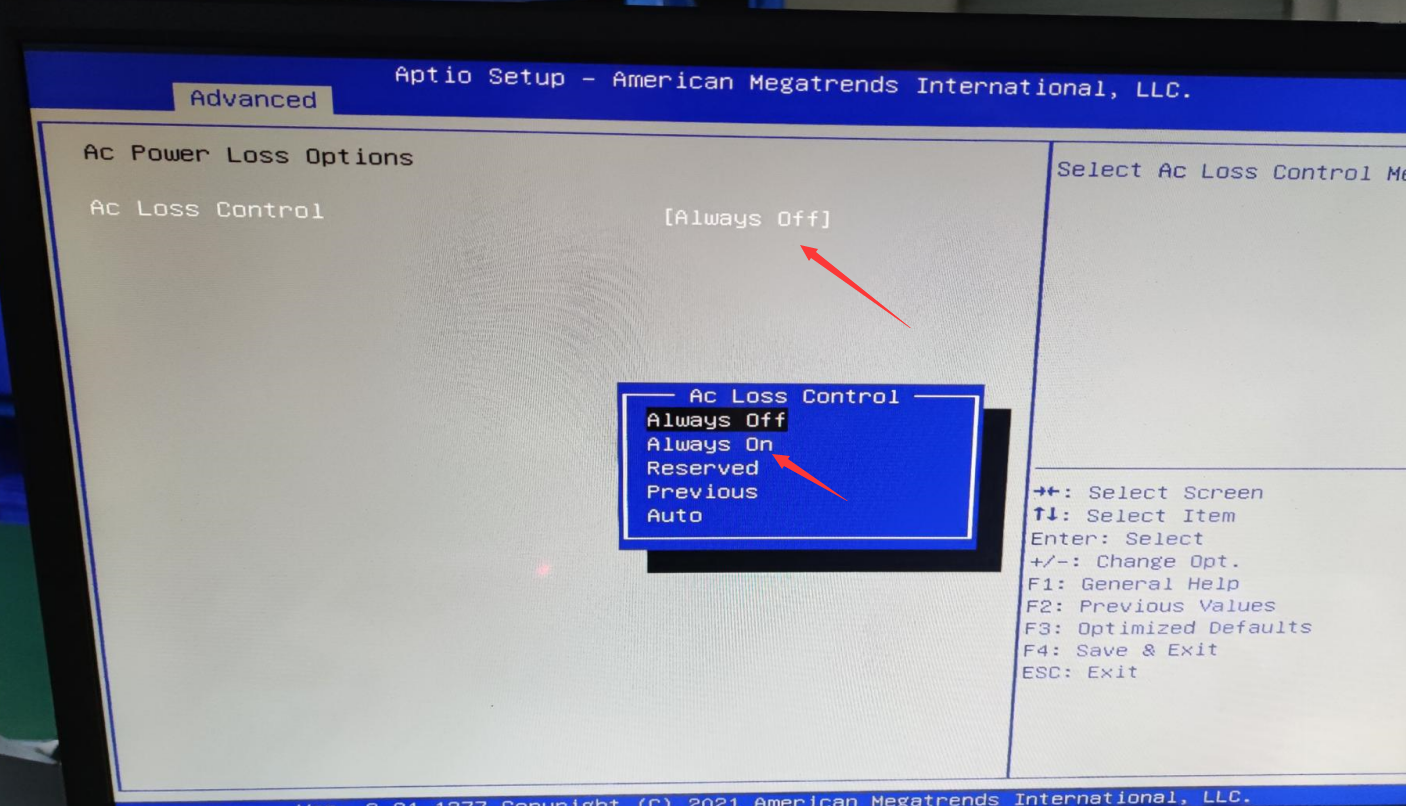

2,Power On AC

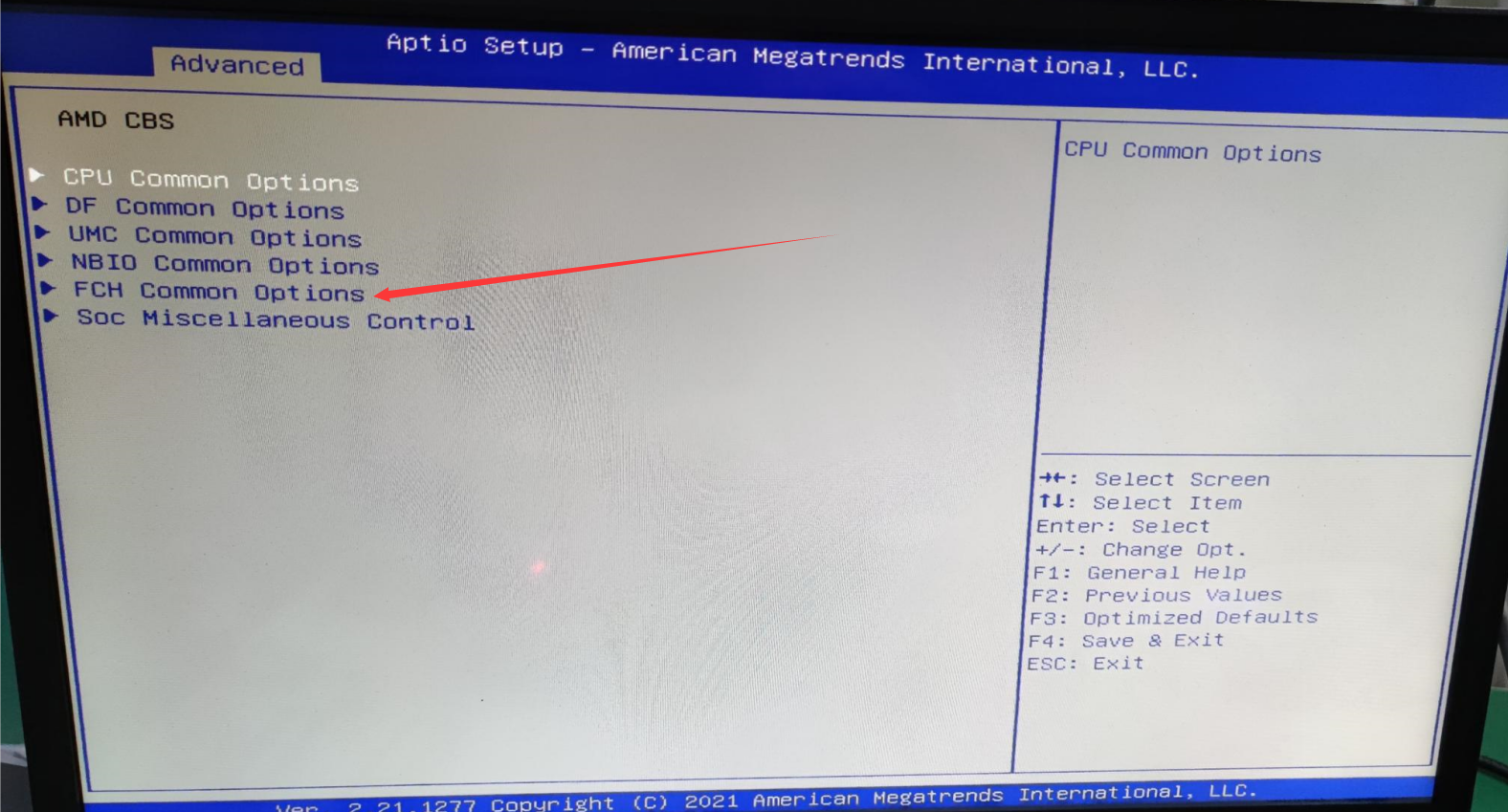

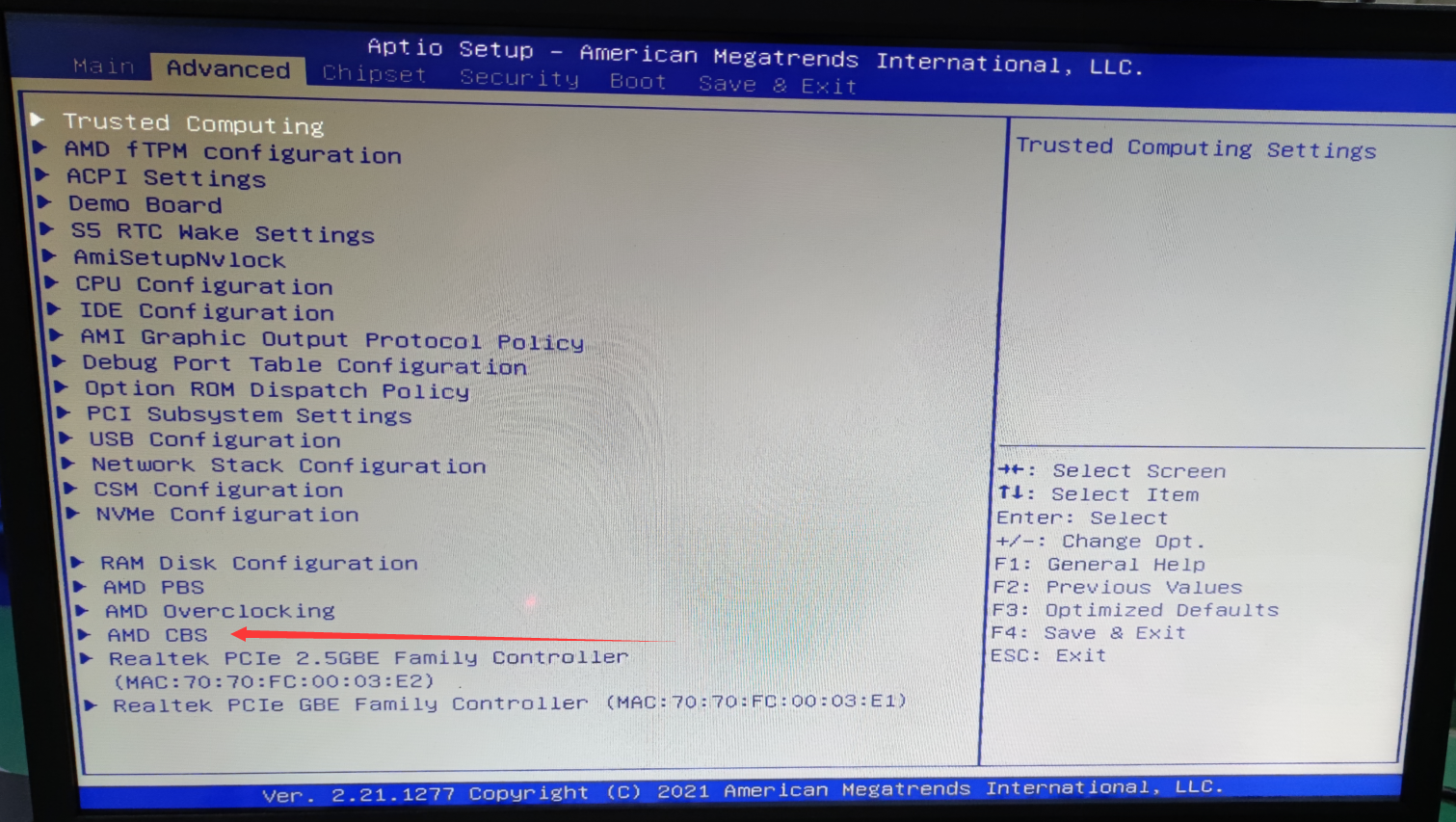

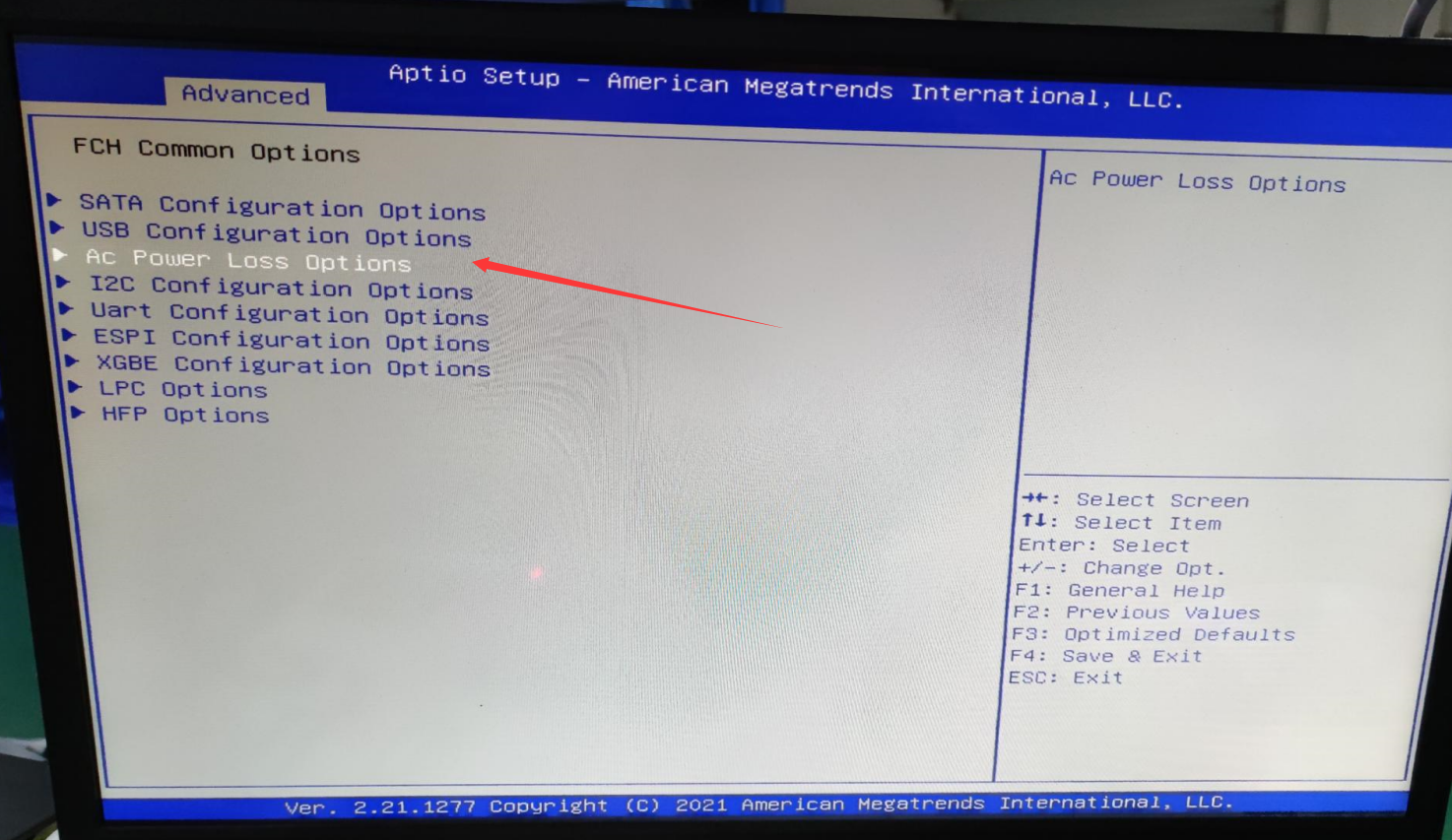

advanced--AMD CBS--FCH Common Options--Ac power Loss options -- Alwasys on









4,PXE setup

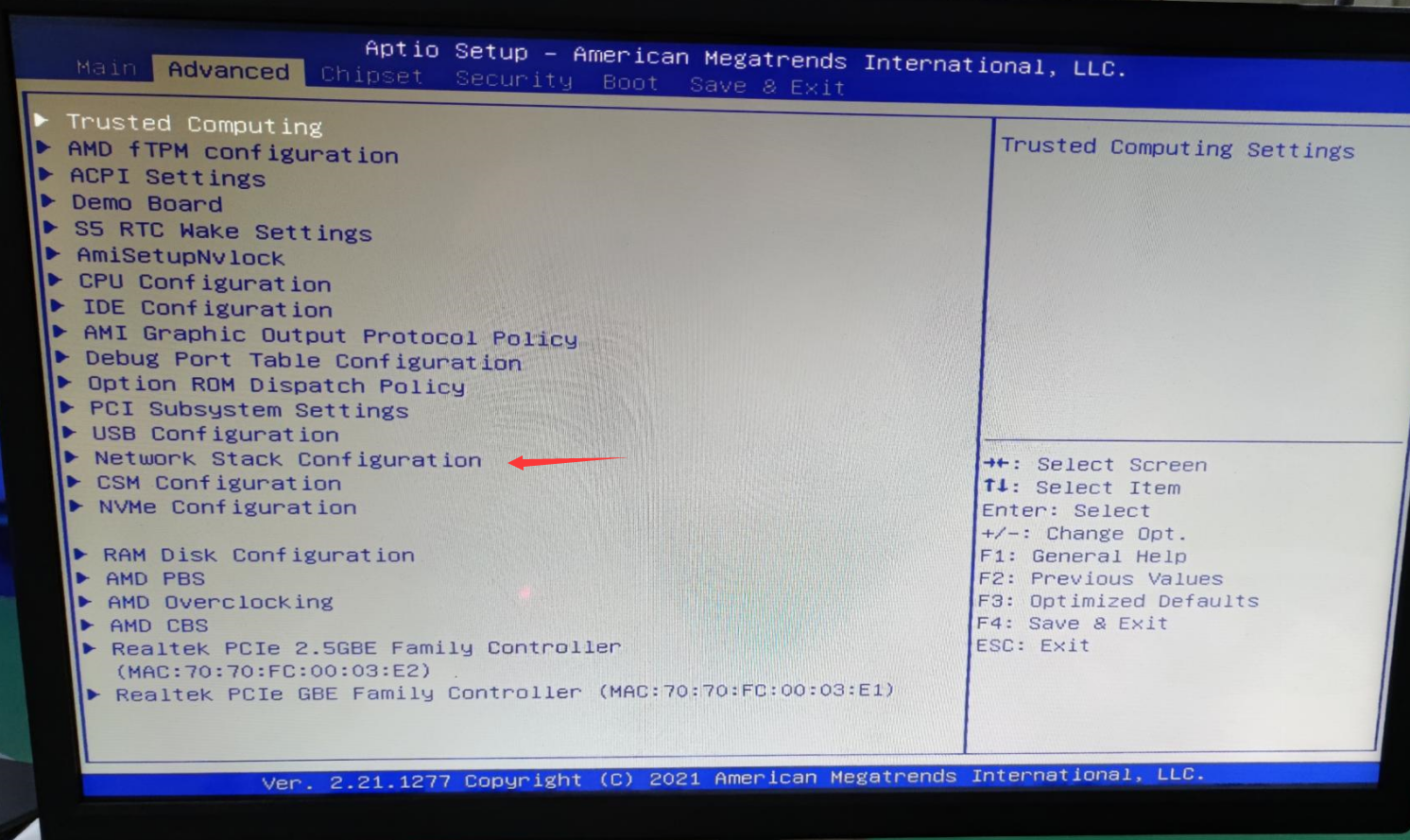

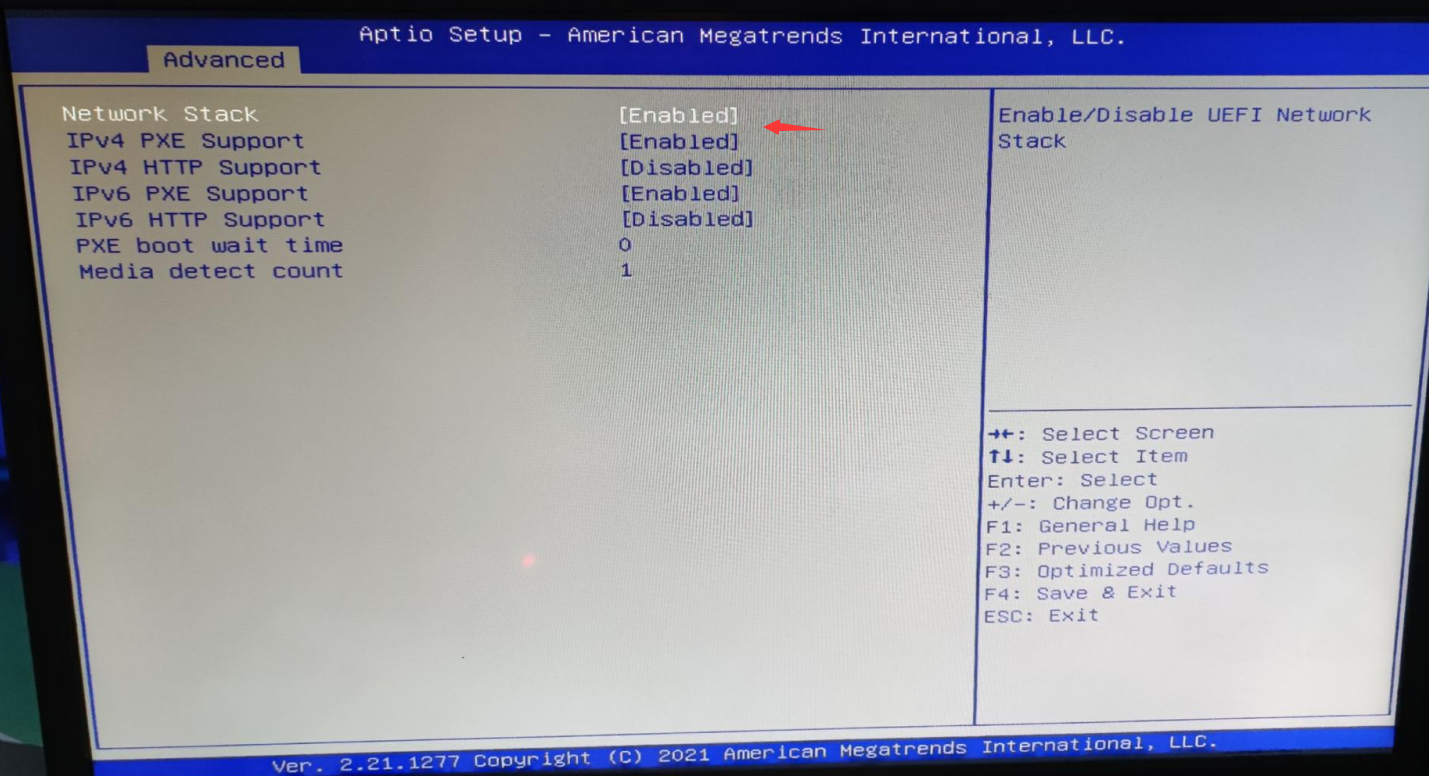

Advanced -- Network Stack Configuration -- Network stack -- Enabled







3,RTC Wake Settings

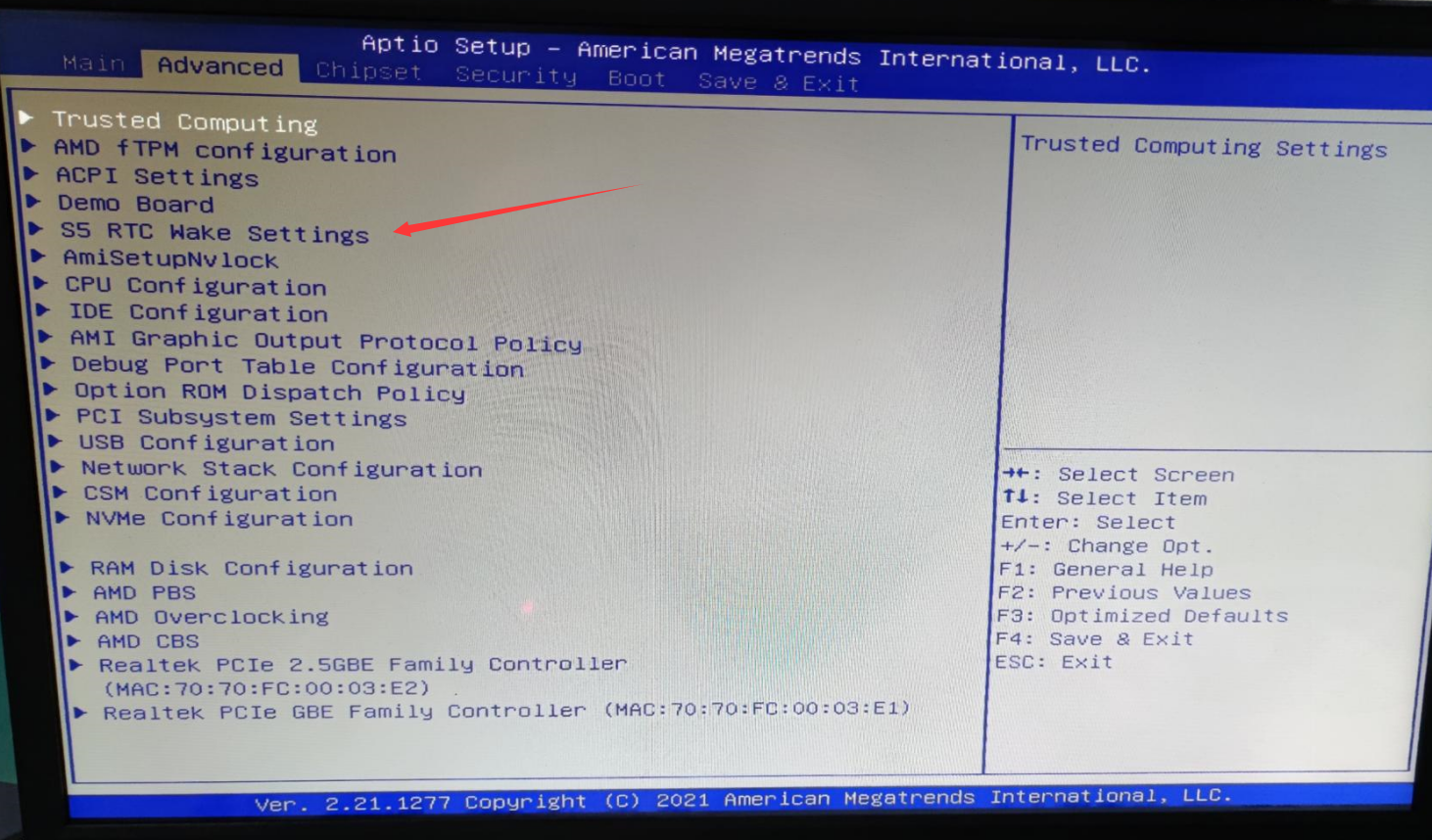

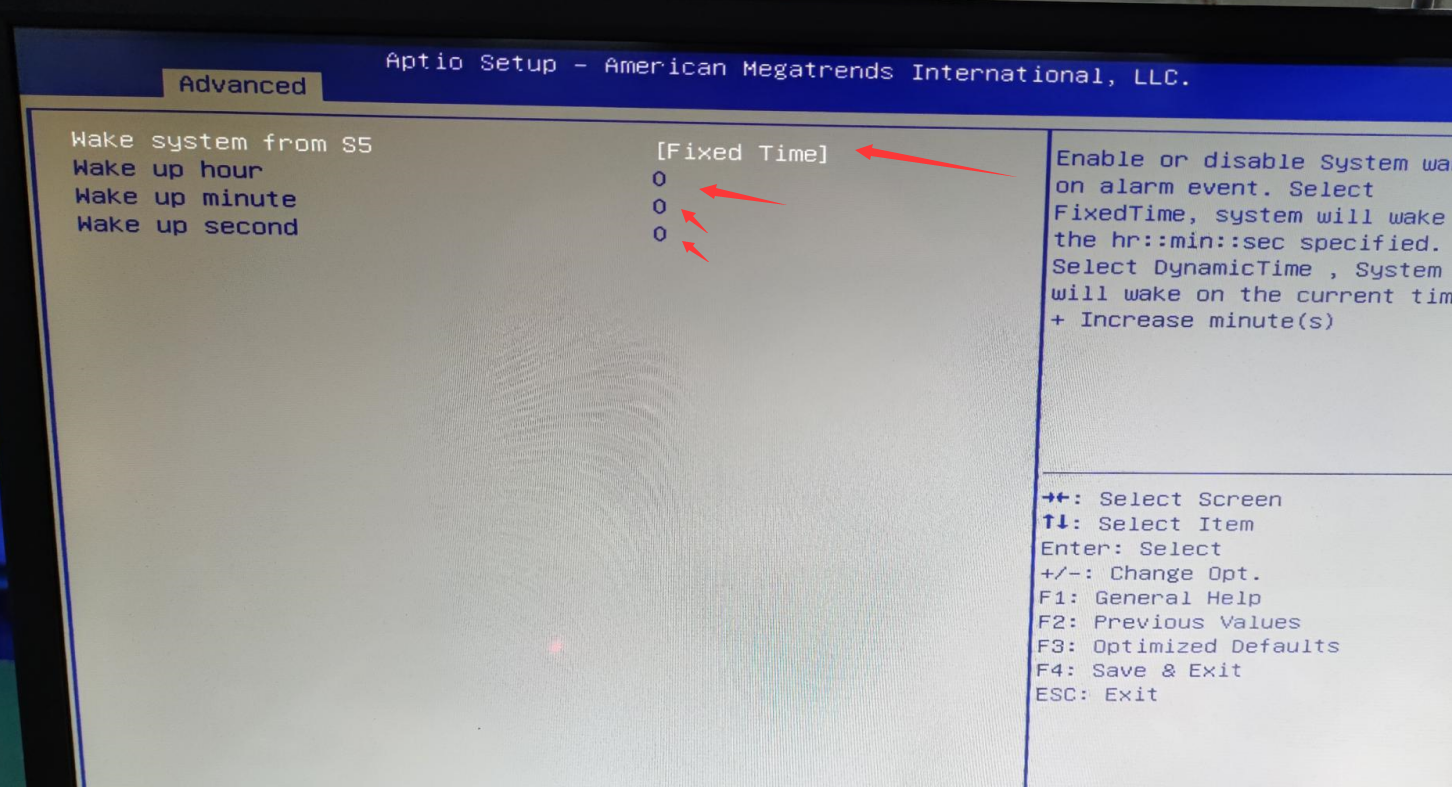

Advanced-- S5 RTC Wake Settings-- wake system from S5 (Fixed time)-- setup the time you want the pc turn on







PS : All the setup must Press F4 to save
